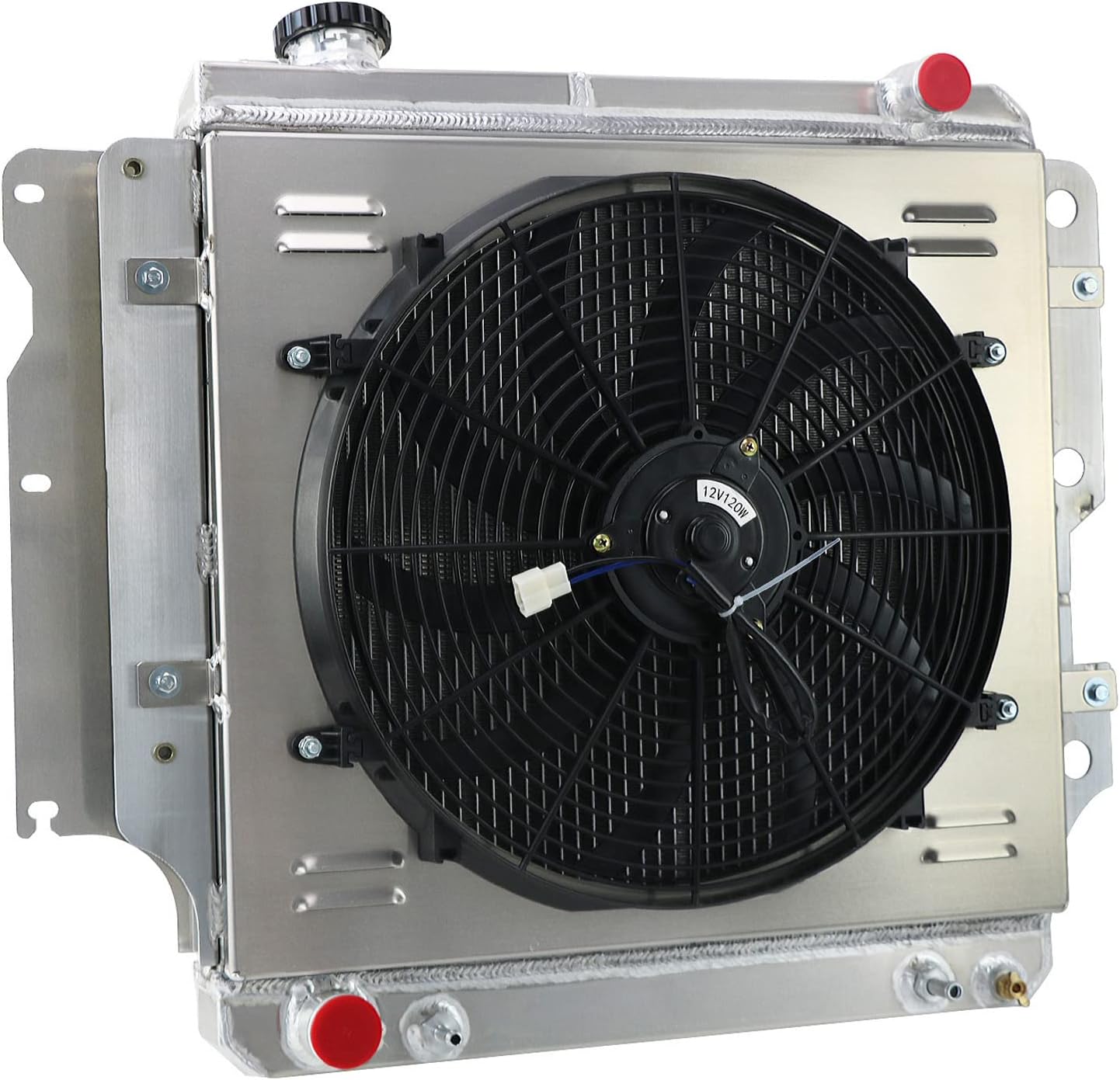

4 Row Aluminum Radiator Shroud Fan Relay for 1987-2006 Jeep Wrangler TJ 2.4L 2.5L 4.0L 4.2L L4 L6 87-06 Radiators
Product details
| Management number | 229639215 | Release Date | 2026/05/31 | List Price | US$133.60 | Model Number | 229639215 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Fitment: For Jeep TJ 2.4L l4 GAS 2003,2005-2006 For Jeep TJ 2.5L l4 GAS 1997-2002 For Jeep TJ 4.0L l6 GAS 1997-2006 For Jeep Wrangler 2.4L l4 GAS 2003-2006 For Jeep Wrangler 2.5L l4 GAS 1987-2002 For Jeep Wrangler 4.0L l6 GAS 1991-2006 For Jeep Wrangler 4.2L l6 GAS 1987-1990 This Listing Is Including: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fan (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: 4 Row Core Radiators Material: All Aluminum ; Aircraft 5057 grade aluminum Fitment Type: Direct Replacement Crafts: 100% Tig welded Delivery: Local Delivery Placement on Vehicle: Engine Compartment, Front Features: 100% Leak Tested, Downflow Radiator Mounting Style: Bolt-On OE/OEM Part Number: CC2101 CU2101 DPI2101 1682 CC1682 RAD1682 AE2101 EC2101,1015,1507,2101,2760,RK7821015, 1507, 2101, 2760, RK782 2101,SBR2101,CC2101,CU2101,MC2101,1682 CU1682 RAD1682,52080180,52080181,52080183,52080184,RA-JEEP87-3 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
- Core Size : 18.11" H x 20" W x 2.44" T ; Overall Size : 25.99" H x 23.03" W x 6.3" T
- Upper Let : 1.25" Passenger Side;Lower Outlet :1.5" Driver Side;Transmission Oilcooler:￠26×305×M16*1.5（Z) ; Transmission: Automatic and Manual.
- High-quality material: Transmission Oil Cooler is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the Transmission Oil Cooler is welded in vacuum brazing furnace, no epoxy.
- Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
- Fitment: For Jeep TJ 2.4L l4 GAS 2003,2005-2006 ; For Jeep TJ 2.5L l4 GAS 1997-2002 ; For Jeep TJ 4.0L l6 GAS 1997-2006 ; For Jeep Wrangler 2.4L l4 GAS 2003-2006 ; For Jeep Wrangler 2.5L l4 GAS 1987-2002 ; For Jeep Wrangler 4.0L l6 GAS 1991-2006 ; For Jeep Wrangler 4.2L l6 GAS 1987-1990
| UPC | 753684789371 |
|---|---|
| ASIN | B09MYZLM2J |
| Model | Radiator Shroud Fan Relay For Jeep |
| Brand Name | RadRace |
| Part Number | MotorPartsZone720 |
| Contact Type | Normally Open |
| Manufacturer | MotorPartsZone |
| Mounting Type | Surface Mount |
| Connector Type | Wire |
| Current Rating | 12.7 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Warranty Description | 1 Year Warranty |
| Contact Current Rating | 12.7 Amps |
| Lower Temperature Rating | 165 Degrees Fahrenheit |
| Maximum Switching Current | 12.7 Amps |
